GENERATORS
Magnet generators: Power supply for load-lifting magnets on handling machines
Made for special requirements: Magnet generators from Mozelt are used as power producers when maximum robustness and reliability are required. Our CoolGen4 series magnet power generators don’t fail to impress: They ensure a continuous power supply for electrically operated load-lifting magnets and are designed as power generators for material handlers, mobile excavators, cranes, forklifts, and construction machinery—wherever large quantities of ferromagnetic materials need to be moved safely and efficiently.
Magnet power generators from Mozelt Magnet Systems

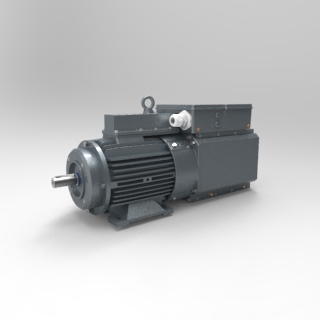

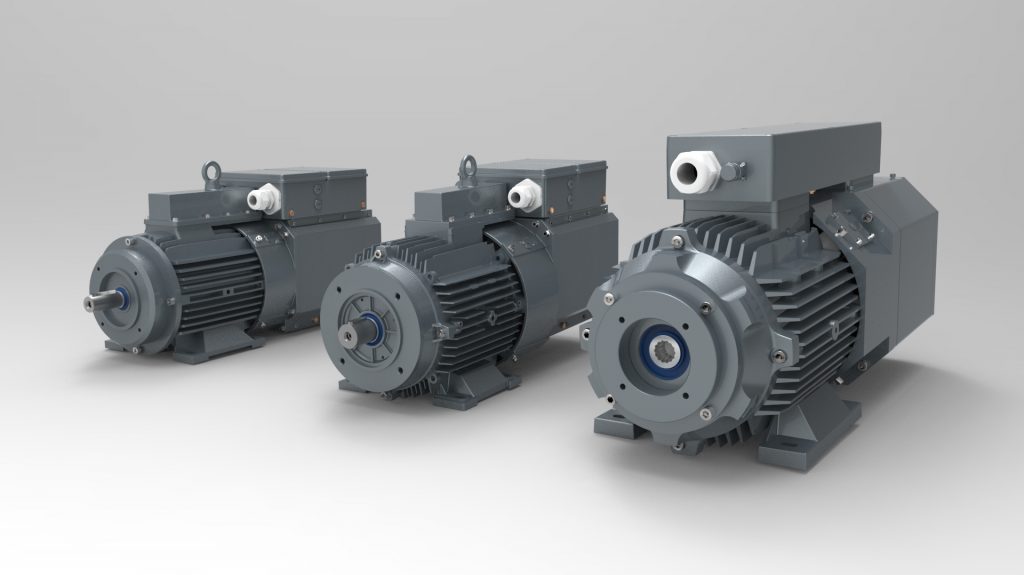

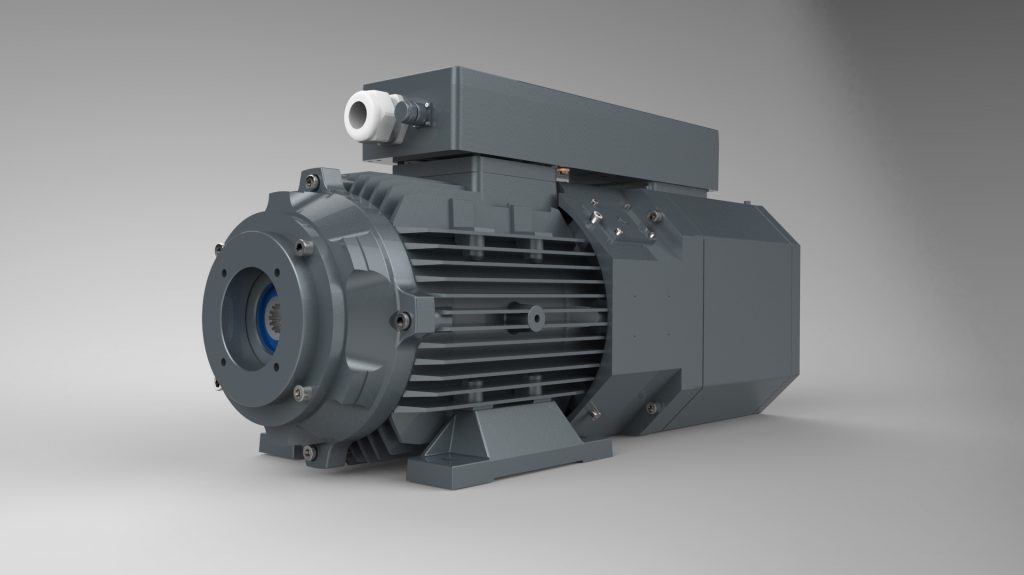

Our CoolGen4 series generators are specially designed to meet the requirements of electrically operated load-lifting magnets in handling machines. This allows ferromagnetic materials such as heavy scrap, slabs, core scrap, ingots, pig iron, cast iron scrap, shear scrap, as well as chips and mill scale to be moved quickly and efficiently. Thanks to their robust design and advanced technology, these generators are perfect for demanding applications in scrap processing and metal recycling. They also contribute to steelworks and are used with drop-ball operations, in the demolition sector, in track construction, and other material handling areas.
The CoolGen4 series generators come with all the necessary accessories, such as a V-belt drive or complete hydraulic installation kit, to install the right magnet system on your mobile excavator or tracked machine. Many well-known manufacturers install Mozelt Magnet Systems generators on newly built machines directly in the plant.

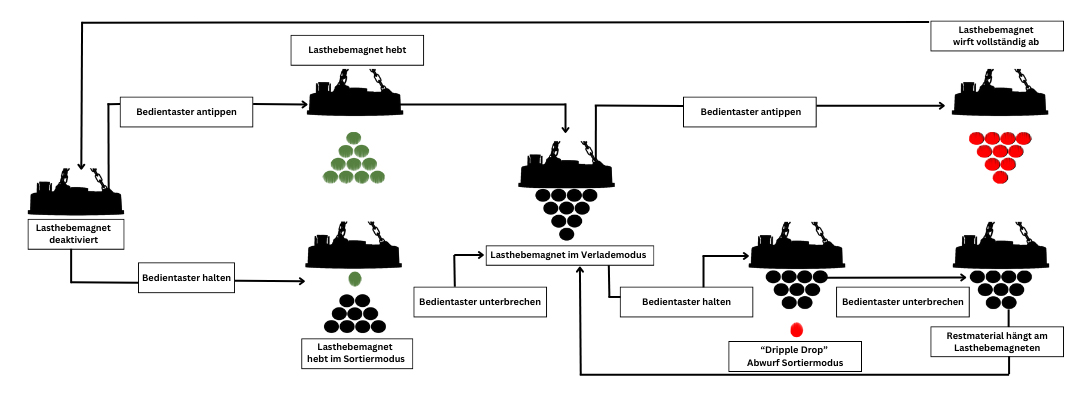

Sorting function and dribble drop for effective work
The CoolGen4 series’ special features include its compact construction and modular design, which enables easy integration into the carrier unit. The magnet generators are not only powerful but can also be used flexibly and adapted to individual requirements. Another notable feature is the sorting function dribble drop, which makes it easier to pick up and precisely set down ferromagnetic loads. This allows you to sort material efficiently and precisely, thus optimize your work process.
Magnet system for electric excavators
In the field of electrically driven handling machines, Mozelt offers a wide range of options for using a magnet system. Mozelt Magnet Systems focuses on your needs and offers complete solutions for all electric excavator from any manufacturer.
Generators for special applications
If you need a power generator for your handling or construction machine and have special work planned, please do not hesitate to contact us. We offer custom-made solutions for all kinds of challenges, such as the operation of concrete vibrators, electrical control of traverses or backup systems, and emergency power supplies for your magnet system.
Buying a magnet systems:
Benefits of the CoolGen4 magnet generator
The CoolGen4 series magnet generators offer a range of benefits that make them the ideal choice for companies in the steel and metal industry, ideal for scrap handling and recycling, as well as track construction and demolition:

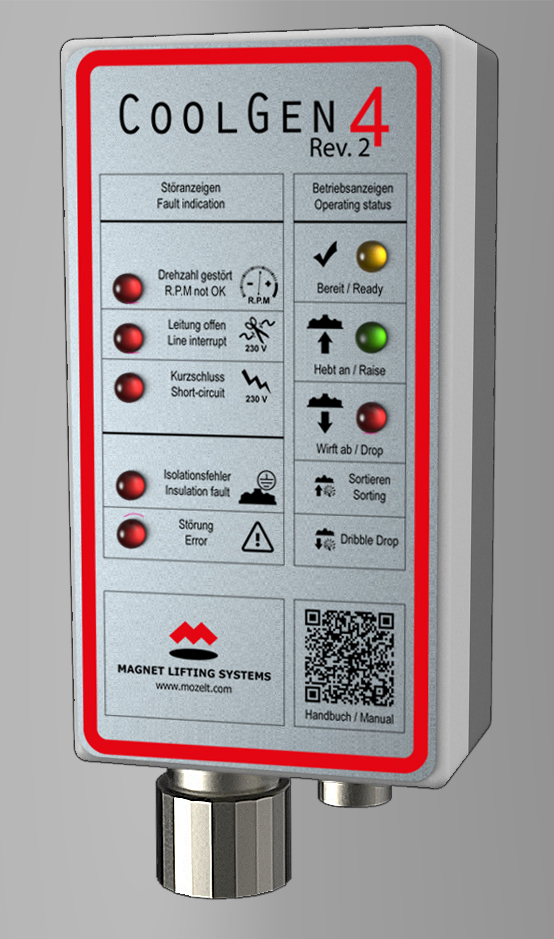

Multifunction display
Damit haben Sie alle relevanten Daten zum Betrieb stets unter KontrolleAll the relevant operating data at a glance and under control.
Short-circuit and overload-proof
An uninterrupted power supply avoids costly outages.
Self-regulating output voltage
High energy efficiency for reliable operation at lower costs.
100 % duty cycle
Permanent energy supply around the clock, without interruption.
Can be used with "HydraMind" hydraulic unit as a standard
Easy installation of the magnet power generator on almost any handling machine.
Improved cooling system
Stays cool even under challenging operating conditions.
Maintenance-free system
The CoolGen4 series generators are completely maintenance-free.
USB interface for service purposes
Read out current operating stats and optimize the generator for use.
Optional service tool
With several pro features, e.g. fine-tuning the pick-up and discharge speed of individual materials.
How do magnet power generators work?
Magnet power generators work according to a simple, proven, and highly effective principle. In the core of a magnet generator, a rotor turns inside a magnetic field. The rotary motion generates an electrical voltage that is output as current. Mechanical energy is converted into electrical energy.
The unique control system of the Mozelt magnet generators converts the alternating current of the stator into direct current. Thanks to the special counter excitation used by Mozelt, the magnetic material can be picked up in milliseconds and repelled from the magnet in fractions of a second. Thanks to the unique control system, the current can efficiently supply each load-lifting magnet with energy and bring it to peak performance. This not only makes your handling significantly faster but also maximizes its efficiency.
You can rely on Mozelt: From advice to great service
Durability, quality and reliability are decisive factors when selecting magnet systems. At Mozelt Magnet Systems, you will find high-performance systems for demanding industrial applications. On top of supplying you with reliable products, we offer high-performance service. From consulting up to the delivery and maintenance, we provide you with individual support for your requirements!
Mozelt Magnet systems are now represented in 78 countries worldwide, and customers have been relying on quality “Made in Germany” for over 55 years.
